Plate Heat Exchangers for Air-to-Air Heat Recovery

A plate heat exchanger transfers energy between two air streams through thermally conductive plates. The supply and exhaust air pass on opposite sides of the plates and never mix, which is why a plate core is the default choice whenever the incoming air must not pick up any odour from the outgoing air. The plates carry a hydrophilic aluminium foil or epoxy-coated aluminium foil, which wets readily so that condensate drains along the channel instead of reducing the transfer rate.

Four configurations in the ROTER plate range

Model Airflow arrangement What it recovers Link

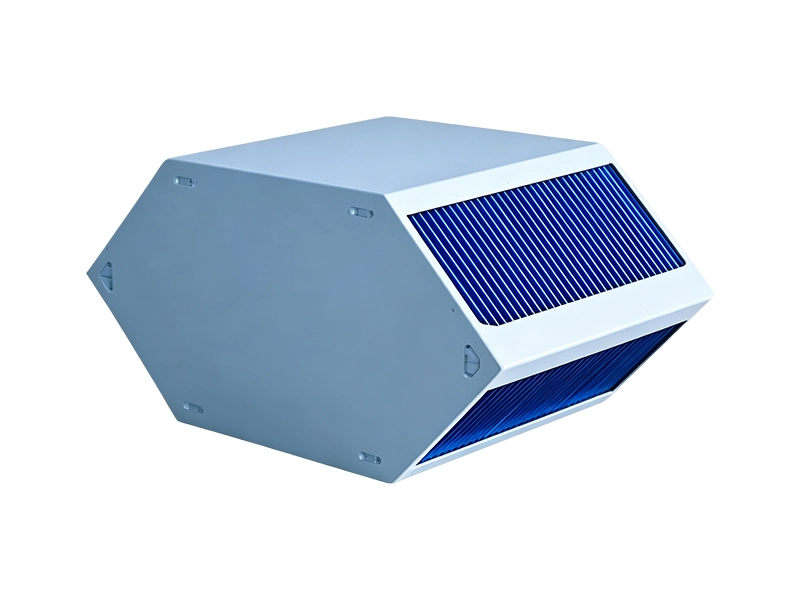

Cross counter-flow plate heat exchanger Partly cross flow, partly counter flow Heat, with supply and exhaust air fully separated Details

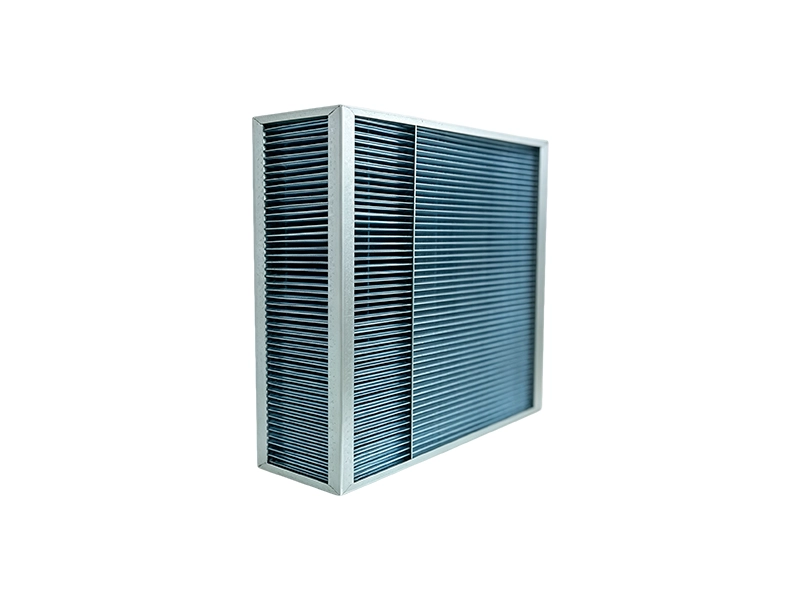

Counter-flow plate heat exchanger Counter flow Heat at the lowest possible transfer approach temperature Details

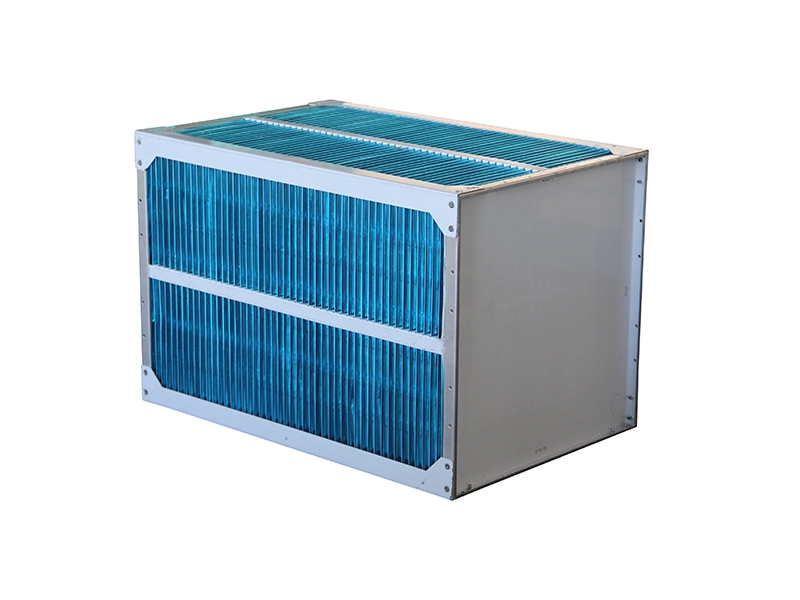

Plate sensible heat exchanger Cross flow across enclosed aluminium fins Sensible heat only, no moisture Details

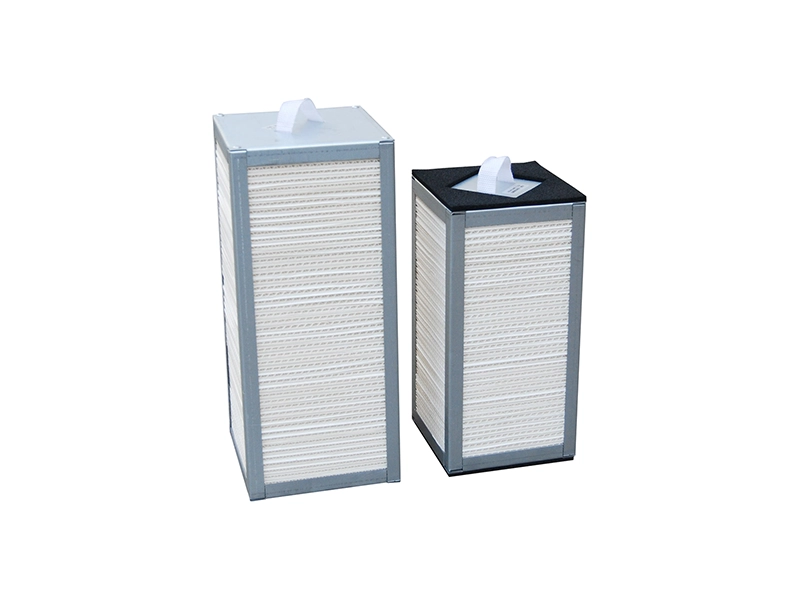

Plate total heat exchanger Heat exchange paper and corrugated paper channels Heat and moisture, with no cross-contamination Details

How the plate range differs from the other core types

Compared with a rotary heat exchanger, a plate core has no rotating parts, so there is nothing to wear out and no desiccant to replace, but it is limited by the material of the plate itself and cannot move moisture through a solid barrier. Compared with a heat pipe heat exchanger, a plate core reaches a lower transfer temperature but has no condensate-free property. Where the requirement is simply separated airflow with good heat recovery, the plate family is usually the most economical answer.

Where plate heat exchangers are used

ROTER plate heat exchangers are applied to energy recovery in residential, commercial and industrial ventilation systems. In practice that means apartments and houses with a mechanical ventilation system, offices and shopping malls running a fresh air unit, hospitals and laboratories where cross-contamination has to be ruled out, and industrial plants recovering exhaust heat from production ventilation.

What to specify when you enquire

  • The airflow on both the supply and the exhaust side, and the fan static pressure the core has to live with.
  • Outdoor design conditions and the required indoor condition, so the transfer area can be calculated rather than guessed.
  • Whether sensible heat recovery is enough, or latent recovery is needed as well. Sensible only is cheaper and simpler; total heat recovery needs the heat exchange paper core.
  • Corrosion exposure. Hydrophilic foil suits standard indoor air; epoxy-coated foil is available where the air is aggressive or the core needs longer life.

Send these details and the ROTER engineering team will propose the core type, the face area and the number of channels, together with a dimensional drawing and the expected performance.
