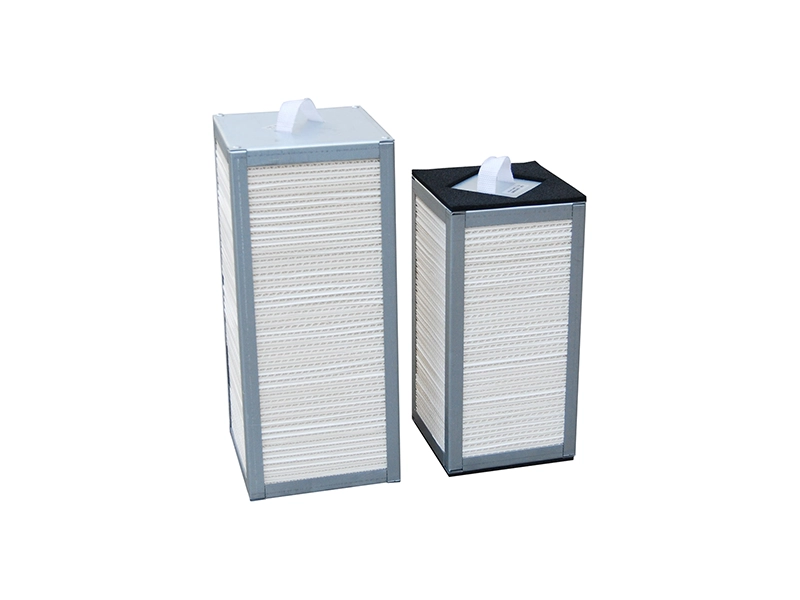

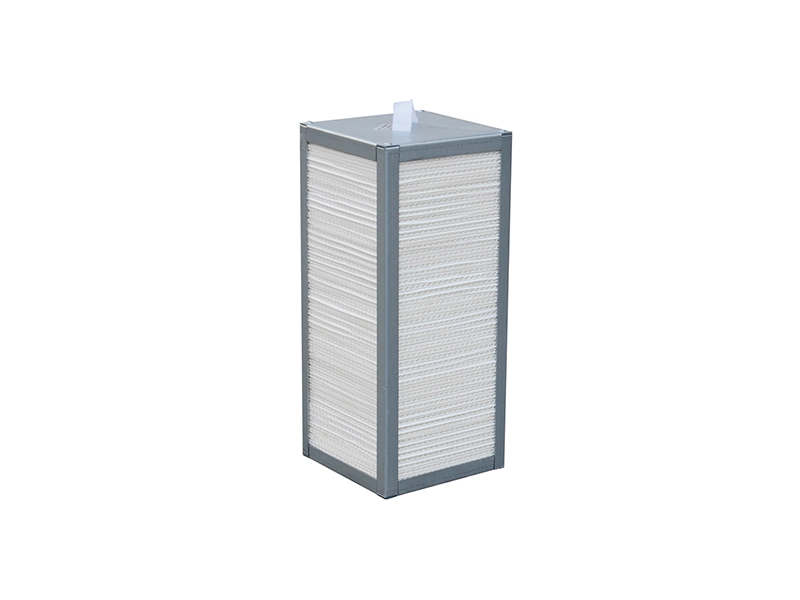

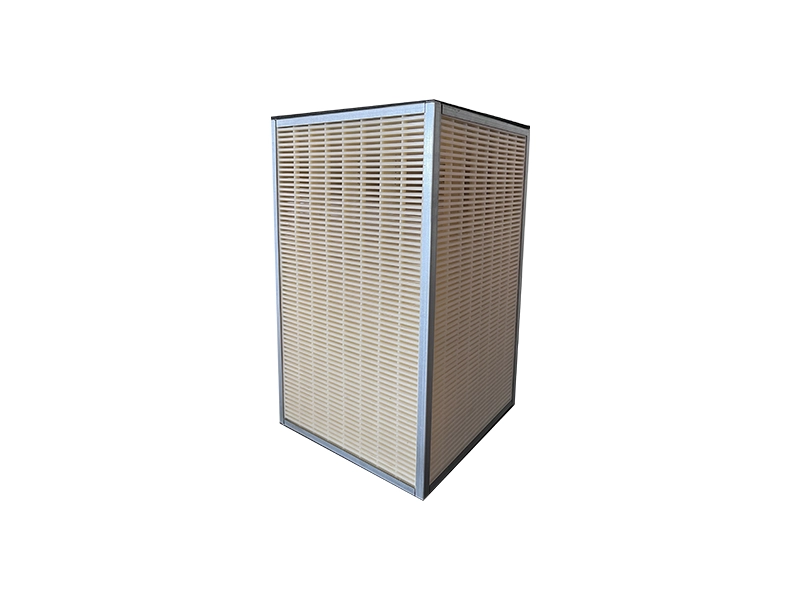

Plate Total Heat Exchanger

Functional Features

1. The plate total heat exchanger is mainly composed of paper made from special fibers through a unique process. This paper features high moisture permeability, good air-tightness, tear resistance, aging resistance, and mold resistance.
2. ABS plastic frame for aesthetics and durability: It adopts an ABS plastic frame that is visually appealing, resistant to breakage, long-lasting, environmentally friendly, and well-sealed — ensuring the structural strength and air-tightness of the heat exchanger while reducing cross-leakage between airstreams.

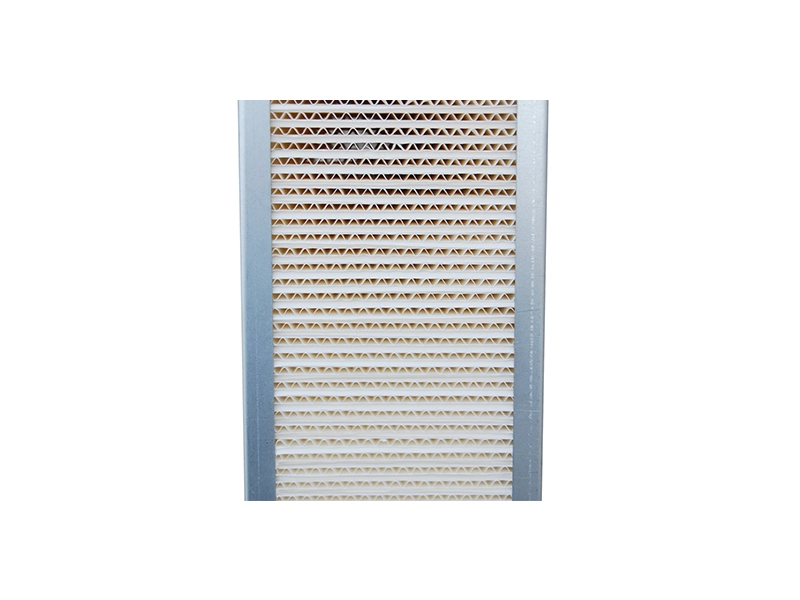

3. Rectangular channel structure for maximum efficiency: The rectangular channel structure, with rational plate spacing and minimal internal support, yields low frictional resistance and small static-pressure loss; it maximizes the heat-transfer area, thereby achieving the highest heat-exchange efficiency.
4. Solves the common weaknesses of plate-fin cores: It resolves the widespread problems of high flow resistance and the trade-off between heat-transfer coefficient and pressure drop that commonly exist in plate-fin total-heat exchange cores.
5. Modular structure for flexible sizing: The modular structure allows combinations of different edge lengths and plate stack-ups.
6. No moving parts, low maintenance cost: With no moving parts, the equipment incurs lower maintenance costs.
7. Easy cleaning and simple upkeep: Dust and foreign matter on the heat exchanger elements can be removed with a vacuum cleaner, making it convenient to use and easy to maintain.
