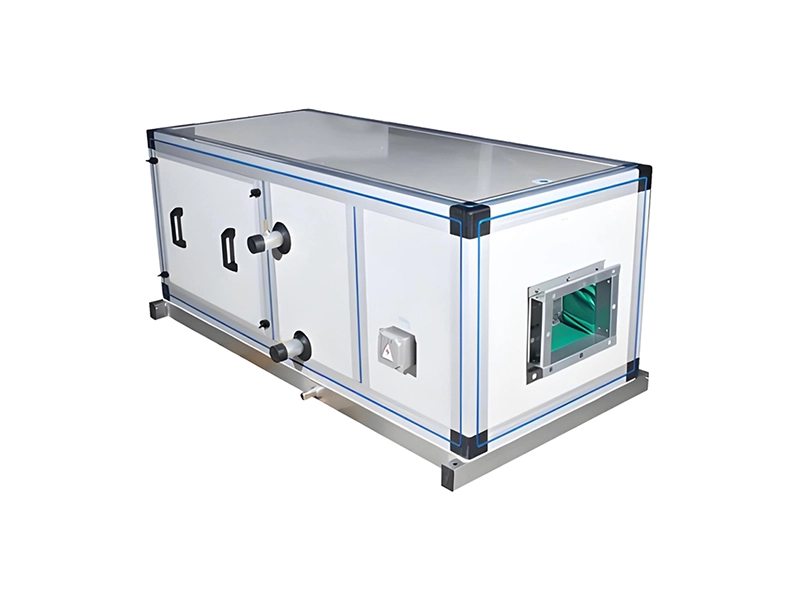

Medium Ceiling-Mounted Heat Recovery Unit

● Airflow range: 1,500–15,000 m³/h.
● Applicable to KTV venues, internet cafes, hotels, shopping malls, factories, office buildings, restaurants, banks, classrooms, kindergartens, hospital wards, and other such locations.
● The unit is mounted within the ceiling, taking up no usable indoor space and leaving the interior decoration unaffected.
● The cross-counter-flow plate heat exchanger raises energy-recovery efficiency, lowers air resistance, and makes the energy-saving effect even more pronounced.

+86 18800560886 +86 17768519872

Medium Ceiling-Mounted Heat Recovery Unit — Performance Table

Unit Model	Rated Airflow (m³/h)	Supply Fan ESP (Pa)		Exhaust Fan ESP (Pa)	Motor Power (kw )	Voltage		Temp. Recovery Efficiency %	Unit Noise dB(A)
Unit Model	Rated Airflow (m³/h)	4-row	6-row	Exhaust Fan ESP (Pa)	Motor Power (kw )	Voltage		Temp. Recovery Efficiency %	Unit Noise dB(A)
CXH-15DB	1500	180	130	130	0.45/0.37	380V	50HZ	71	67
CXH-20DB	2000	180	130	180	0.45/0.37	380V	50HZ	72	68
CXH-25DB	2500	210	160	210	0.65/0.55	380V	50HZ	72	68
CXH-30DB	3000	210	160	210	0.90/0.65	380V	50HZ	71	69
CXH-40DB	4000	260	210	260	1.37/0.9	380V	50HZ	68	69
CXH-50DB	5000	270	220	270	1.5/1.37	380V	50HZ	68	73
CXH-60DB	6000	290	240	290	2.2/1.8	380V	50HZ	72	75
CXH-70DB	7000	250	200	250	2.2/1.8	380V	50HZ	69	75
CXH-80DB	8000	300	250	300	3.0/2.8	380V	50HZ	71	77
CXH-90DB	9000	300	250	300	3.5/3.0	380V	50HZ	69	77
CXH-100DB	10000	300	250	300	3.5/3.5	380V	50HZ	71	78
CXH-120DB	12000	300	250	400	4.5/4.5	380V	50HZ	70	79
CXH-150DB	15000	300	250	400	5.5/5.5	380V	50HZ	70	80

Unit Model	Cooling Capacity (Kw)		Heating Capacity (Kw)		Total-Heat Unit Weight (Kg)
Unit Model	4-row	6-row	4-row	6-row	4-row	6-row
CXH-15DB	16.6	22.3	18.5	23.1	320	332
CXH-20DB	22.5	29.7	27.8	32.8	350	362
CXH-25DB	28.2	37.1	34.5	41.5	410	424
CXH-30DB	33.9	44.5	42.2	49.3	440	455
CXH-40DB	45.1	59.2	55.8	63.5	470	490
CXH-50DB	56.3	74.3	69.5	81.2	490	510
CXH-60DB	67.6	89.6	83.5	96.4	550	573
CXH-70DB	78.9	103.5	98	113.2	630	667
CXH-80DB	90.6	118.8	112	130.5	710	744
CXH-90DB	101.4	133.5	121.2	144.3	820	858
CXH-100DB	112.6	148.3	140	162.5	950	990
CXH-120DB	135.2	178.1	168.5	195.2	1050	1090
CXH-150DB	168.9	223.4	205.2	242.3	1280	1324

Notes：
(1) Fresh airflow = exhaust airflow = rated airflow.
(2) The enthalpy recovery efficiency is based on the following operating conditions: Summer — outdoor dry-bulb temperature 33°C, RH 80%, indoor dry-bulb temperature 26°C, RH 50%; Winter — outdoor dry-bulb temperature 0°C, RH 30%, indoor dry-bulb temperature 20°C, RH 60%. If the operating conditions change, the actual efficiency may fall outside the stated enthalpy recovery efficiency range.
(3) Cooling: water inlet temperature 7°C, water outlet temperature 12°C; Heating: water inlet temperature 60°C, water outlet temperature 50°C.
(4) This is for reference only.
